Sidewinder Holders

Sidewinder Holders

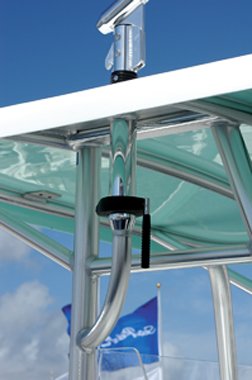

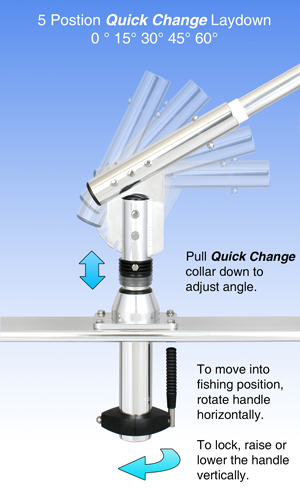

Below top operation. Fully locked in Running and 80 degree out Trolling positions. Locks when handle is up or down. Rotates when handle is to the left or right. Fastest Lay-Down on the market. Automatically locks in position when raising or lowering the pole. No knobs to loosen or tighten. Just pull down the Ridged Collar and lower or raise the pole. Available with 5 Position Quick Laydown. No ball bearings to rust. Internal Delrin and nylon bearing surfaces provide smooth operation and prevent metal to metal contact. Accepts our Telescoping Outrigger ( TX Series), our one piece semi tapered Carbonfiber Outriggers (CX Series) as well as our Standard 16 ft. Extra Strong (AP3916XS) or 18Ft (AP3918), Outrigger Pole. Has 4"x6" Mounting plate. Extends 14" above and 8-1/2" below mounting plate. Fits all outrigger ready boats.

Back-Up Plates available for hard-top installations

SW990 - 4"x6"

Optional 4" wide pre-anodized Weld-In Plate simplifies installation

SW9903-0012 Weld in Plate 12 in.

SW9903-0024 Weld in Plate 24 in.

Weld On

Used by many of today's Premier Boat Manufacturers and Aluminum Fabricators, the Sidewinder has proven itself to be strong, reliable and versatile. The body of the unit is available in either high polished or brush finish to match the type of pipe being used. The body can also be incorporated and powder coated along with the structure. Attachment can be made in numerous ways. Can be added along side or incorporated into the structure. Rotation locks in two position, straight back running and 80 degrees out trolling. Available with 5 Position Quick Lay-Down. Internal Delrin and Nylon Bearing Surfaces allow smooth operation and prevent metal to metal contact.

Recommended Poles for the Sidewinder

• Standard Bolt Together Poles
• AP3916XS - 16 ft. · Extra Strong · Bright Silver Finish with Black Spike
• AP3918 - 18 ½ ft. · Bright Silver Finish with Black Spike
• Telescoping Poles
• TX3916SL/SL - 16 ½ ft. Bright Silver With Silver End Caps and Black Spike
• TX3916SL/GL - 16 ½ ft. Bright Silver With Gold End Caps and Gold Spike
• Carbon Fiber Poles
• Single Rigged
• CX3915 - 15 ft. Carbon Fiber Poles Tapered One piece/ Semi Taper
• Double Rigged
• CX3916 - 16 ft. Carbon Fiber Poles Tapered One piece/ Semi Taper
• CX3918 - 18 ft. Carbon Fiber Poles Tapered One piece/ Semi Taper
• CX3920 - 20 ft. Carbon Fiber Poles Tapered One piece/ Semi Taper
• Step Tube Style Poles
• SX3916XS - 16 ft. · Extra Strong · Bright Silver Finish with Black Spike
• SX3918 - 18 ½ ft. · Bright Silver Finish with Black Spike
