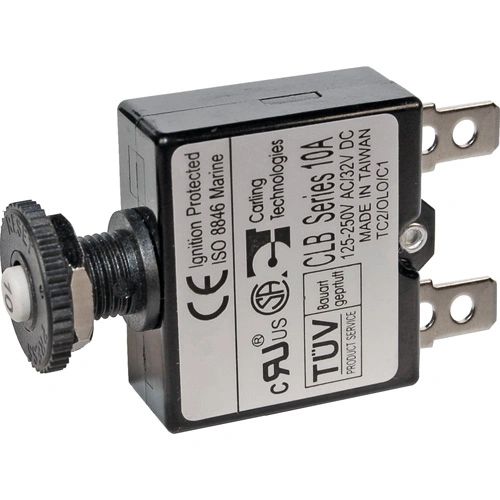

Push Button Circuit Breaker

Provides economical circuit protection for 3 to 40 Amp loads

when switching is provided elsewhere or not required.

Compact, ignition protected design allows high density DC circuit protection in tight quarters. Push-to-reset, “trip free” design cannot be held “ON” during fault conditions. Optional waterproof boot provides additional circuit breaker protection in wet environments.

Available in 10A, 15A & 20A

• Branch circuit breakers - also used for 24-hour circuit protection
• Push-to-reset operation
• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
• Ignition protected - Safe for installation aboard gasoline powered boats
• Optional push button waterproof boot protects circuit breaker in wet environments

• Circuit Breaker Type: Thermal trip, manual push-button reset only
• Voltage Compatibility: DC
• Maximum Voltage: 32V DC
• Interrupt Capacity: 3000A @ 14.7V, 2500A @ 28V
• Safety Features: “Trip Free” design cannot be held “ON” during fault
• Housing Material: Plastic
• Housing Dimensions: 1-3/8"L x 5/8"W x 2-3/8"D
• Terminal Type: 1/4" Male Quick Connect Terminals
• Mounting Hardware: Mounts in 3/8" hole
• Approvals: UL 1077 -UL cUL (USA and Canada), TUV certified, UL 1500 and ISO 8846, CE Marked
• Warranty: Life time
